Product View
ECOTimePrint ECO301D

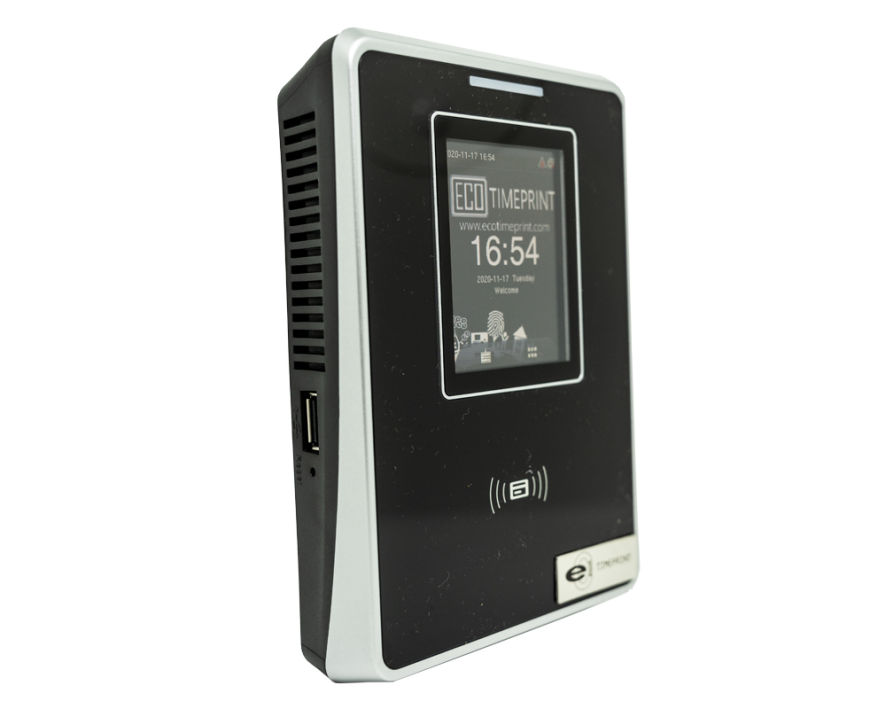

ECO301D is a RFID Access Control Terminal which possesses a 3 inch Color Touch Screen. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in offices and any other public facilities.
SPECIFICATIONS
| Model | ECO 301D |
|---|---|
| Screen | 3 inch Touch Screen |
| Communication | TCP/IP, USB Flash Disk |
| RFID Card Template | 30,000 |
| User Capacity | 30,000 |
| Records Capacity | 100,000 |
| Authentication Method | RFID Card / Password |
| Identification Time | <1S |
| Authentication Mode | 1:1, 1:N |

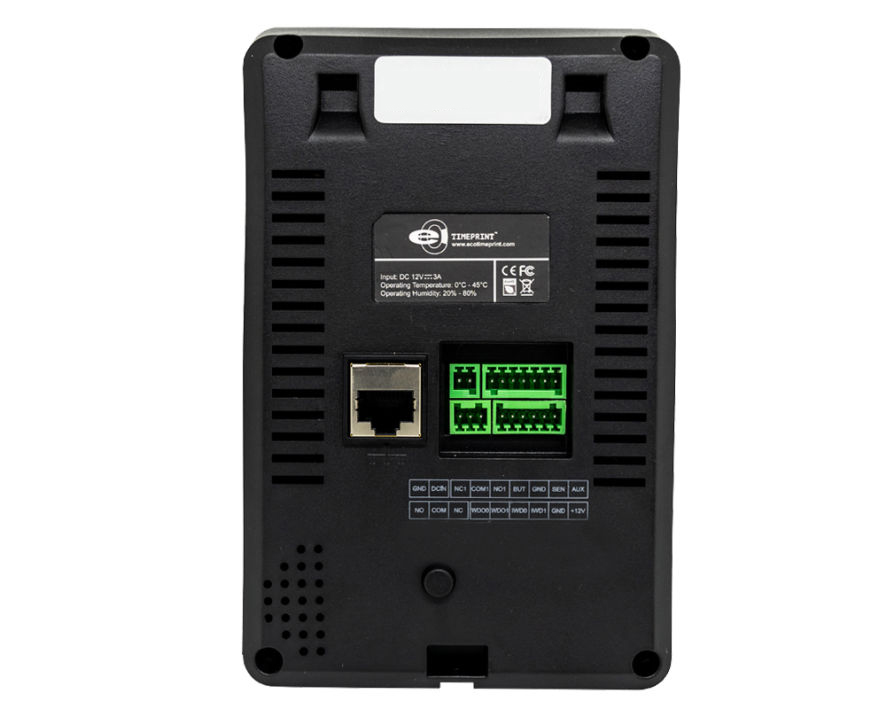

| Access Control Interface | Wiegand 26/34, Door Lock, Siren, Release Button, Door Sensor |
| Professional Access Function | door by multilevel verification, anti-pass back |
| Power | DC12V/3.0A |
| Operating Environment | 0℃ - 45℃, Humidity: 20% - 80% |
| Dimension(L*W*H) | 160*105*35mm |
