Product View

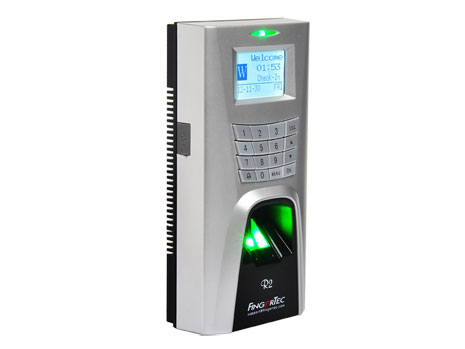

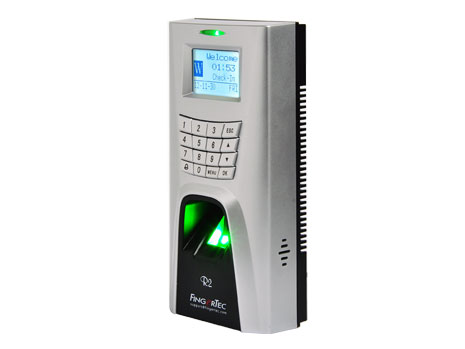

FingerTec R2

FingerTec R2 empowers biological traits to enhance security in your daily life, as biometrics technology is a proof of real identity. Dubbed as FingerTec’s bestselling terminal for access control, the R2 series is the ideal fingerprint system for those looking for security control with practicality. With the combination of R2 and R2c, both entrances and exits are controlled by secured biometrics keys, providing users with absolute comfort and value for money. FingerTec R2 series also offers the most commonly used communication protocols, and is equipped with an additional USB port for easy data transfer. FingerTec R2 comes with the powerful software for easy data management and presentable reporting. On top of that, FingerTec R2 terminals run on a Linux platform, offering a more flexible operating system to cater to functions customization. Complimentary FingerTec BioBridge SDK is also available upon request for integration with third party software.

Specification

MODEL R2
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER Non coated optical scanner
PROCESSOR 400 MHz
MEMORY 128 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0 / VX 10.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 94 x 50 x 189
STORAGE
• Fingerprint templates 3,000
• Transaction logs 120,000
ENROLLMENT & VERIFICATION
• Methods Fingerprint (1:1, 1:N), password
• Recommended fingerprint per user ID 2
• Fingerprint placement Any angle
• Verification time (sec) < 1
• FAR (%) < 0.0001
• FRR (%) < 1
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB Disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 3A
TIME ATTENDANCE
• Work codes Yes
MULTIMEDIA
• Greeting voice Yes
• Short messaging Yes
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output
• Alarm output NO/NC
• Anti-passback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Traditional (Cantonese), Simplified Chinese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian.
Other languages are available upon request.
SOFTWARE
Ingress
APPLICATION (optional)
Time Attendance
Attendance
