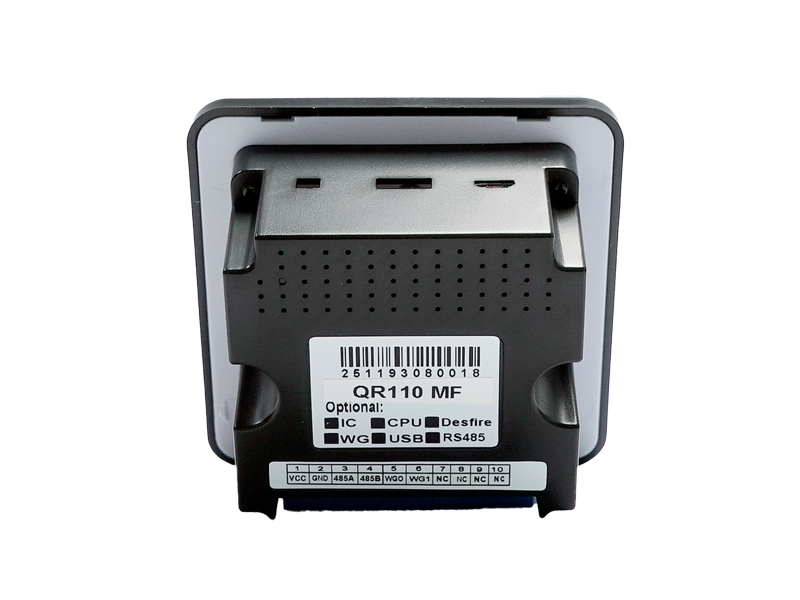

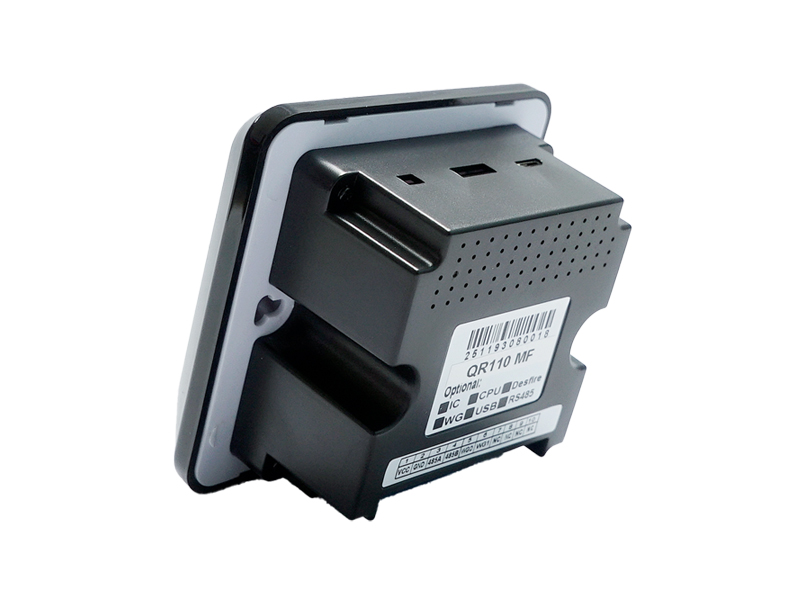

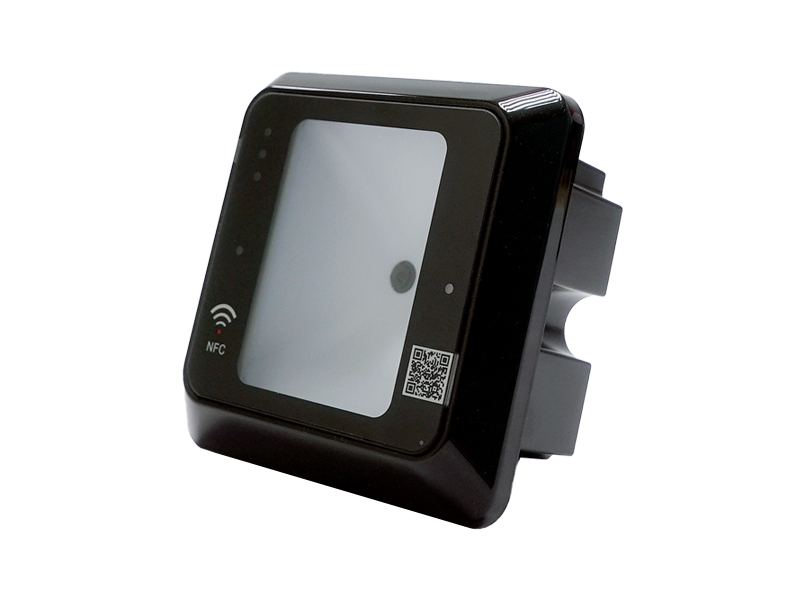

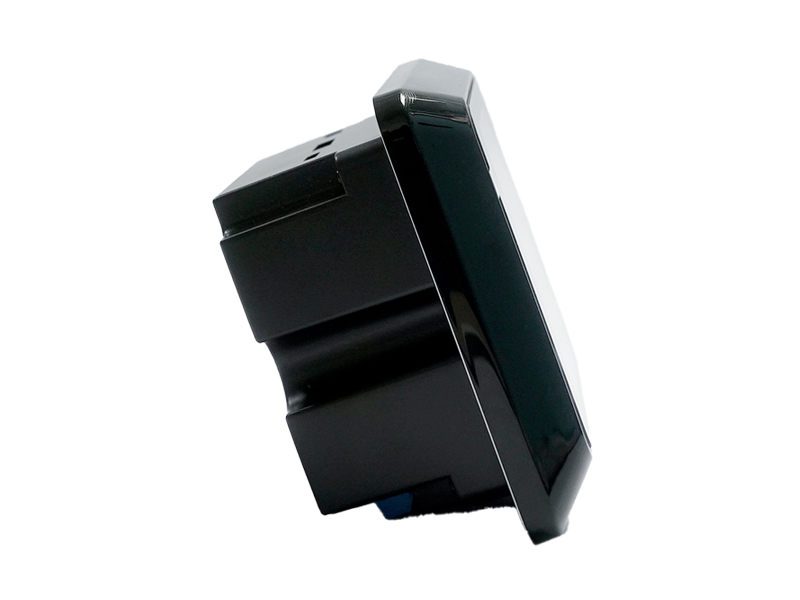

FingerTec QR110

Simply scan your way with QR110 to conveniently obtain access to your space. The administrator just needs to issue all credentials for the authorized personnel and every time these credentials are used, the bundled software will record every activity accurately as well as keep the data secure for future references. QR110 links to Ingressus controller to control the access to your premises. Get QR110 for a simple, affordable and convenient access control system.

Specification

MODEL QR110
DIMENSION (L X W X H), mm 86 x 40 x 86
QR CODE Storage in primary
CARD Storage in primary
MICROPROCESSOR Managed by primary
MEMORY Managed by primary
OUTPUT FORMAT Wiegand 26/34
COMMUNICATION DISTANCE Wiegand < 100m
RS485 < 1200m
WORKING VOLTAGE DC 9 ~ 16V
WORKING CURRENT < 100mA
WORKING ENVIRONMENT Temperature (°C): -10 ~ 70
Humidity (%): 10 ~ 70 (Indoor use)
SENSING DISTANCE QR Code (cm): 3~10
READING SPEED < 0.2 seconds
READING INTERVAL <0.5 seconds
SUPPORT Q2i, R3, R2, Face ID 3, Face ID 5, Face ID 6, Kadex+, Ingressus I/II/IV
SOFTWARE
Ingress
