Product View

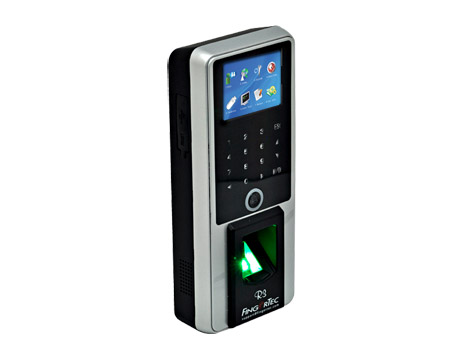

FingerTec R3
R3 is the latest biometrics door access and time attendance product from FingerTec, which combines modern technologies, great design and amazing functions in one. This machine features an eye-catching 2.4” color LCD and intuitive touch-panel; made robust to stand the wear and tear of everyday use. Multiple methods of verification which include fingerprint, card and password are available in R3, providing convenience at its best to busy users. The product comes bundled with Ingress, the perfect door access solution that is loaded with great door access features and comprehensive time attendance features, all without additional charges. With R3, life gets more exciting and secured with keyless door access solution for your life’s convenience.
Specification
| MODEL | R3 | ||
| SURFACE FINISHING | In-mould labelling (IML), polycarbonate (PC) & acrylonitrile butadiene styrene (ABS) | ||
| TYPE OF SCANNER | Non-coated optical scanner | ||
| PROCESSOR | 400 MHz | ||
| MEMORY | 256 MB flash memory & 32MB SDRAM | ||
| ALGORITHM | Biobridge VX 10.0 | ||
| PUSH TECHNOLOGY | Yes | ||
| PRODUCT DIMENSION (L X W X H), mm | 78 x 32 x 190 | ||
| STORAGE | |||
| • Fingerprint templates | 3,000 | ||
| • Transaction logs | 100,000 | ||
| • Passwords | 10,000 | ||
| ENROLLMENT & VERIFICATION | |||
| • Methods | Fingerprint (1:1, 1:N), password | ||
| • Recommended fingerprint per user ID | 2 | ||
| • Fingerprint placement | Any angle | ||
| • Verification time (sec) | < 1 | ||
| • FAR (%) | < 0.001 | ||
| • FRR (%) | < 1 | ||
| COMMUNICATIONS | |||
| • Method | TCP/IP, RS232, RS485, USB Disk | ||
| • Baud rates | 9600, 19200, 38400, 57600, 115200 | ||
| • Wiegand | 26-bit input / output | ||
| OPERATING ENVIRONMENT | |||
| • Temperature (°C) | 0 ~ 45 | ||
| • Humidity (%) | 20 ~ 80 | ||
| • Power input | DC 12V 3A | ||
| TIME ATTENDANCE | |||
| • Work codes | Yes | ||
| MULTIMEDIA | |||
| • Greeting voice | Yes | ||
| • Display | 2.4” 3k colour LCD | ||
| • Photo-ID | Yes | ||
| • Short messaging | Yes | ||
| ACCESS CONTROL | |||
| • EM lock driving output | DC12V 3A / relay output | ||
| • Alarm output | NO/NC | ||
| • Anti-passback | Yes | ||
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish. Other languages are available upon request. |
||
| SOFTWARE |
|
||
| APPLICATION (optional) |
|
||
